A compliant single-line diagram in Singapore must show every circuit and conductor route, incoming service cable details, switchboard general arrangement, distribution boards, and equipment ratings for switchgear, breakers, and generators, all traceable and labeled to satisfy the Electricity (Electrical Installations) Regulations. The immediate next step is appointing a Licensed Electrical Worker (LEW) with a signed Letter of Appointment, then compiling the SLD alongside supporting documents for an EMA ELISE licence application or BCA/CORENET X submission.
TL;DR:
- Ensuring the SLD includes detailed, traceable conductor routing, equipment ratings, and clear labeling aligned with regulatory standards prevents delays.
- Submitting an up-to-date, physically posted SLD at the switchboard that matches the approved version is crucial to avoid rejection notices and re-inspections.
- Early coordination with the Transmission Licensee for high-voltage nomenclature approval, at least three months before installation, prevents project delays.
- Appointing a Licensed Electrical Worker and obtaining their inspection certification are mandatory steps before applying for an electrical installation license through EMA.
- Using disciplined naming conventions, accurate equipment data, and thorough documentation from design to handover ensures smoother reviews and safer project execution.
Table of Contents
- What Must a Compliant SLD Include in Singapore?
- Which Rules and Agencies Govern SLDs in Singapore?
- How Do You Prepare and Submit an SLD for Licensing?
- What Trips Up Most SLD Submissions?
- Why Disciplined SLD Practice Pays Off on Singapore Projects
- How Aman Engineering Handles SLD Drafting and Authority Coordination
- Sources
- FAQ
What Must a Compliant SLD Include in Singapore?
An SLD is not a rough sketch of wiring. It is a statutory drawing, and reviewers at EMA and BCA check it against a specific set of technical and administrative criteria before an electrical installation licence or building plan gets approved. Every SLD compliance criteria checklist starts with the same question: can a reviewer trace power from the utility connection to the final circuit without guessing?
Getting this right on the first pass saves weeks. Here is what belongs on the drawing itself:
- Single-line circuit representation. Every circuit, feeder, and sub-circuit drawn with conductor routing that can be traced physically on site, matching what the Electricity (Electrical Installations) Regulations require for traceability.
- Incoming service cable details. Cable size, voltage, and point of supply from the utility or landlord installation.
- Main switchboard general arrangement. Physical layout of the switchboard, showing busbar configuration and compartment separation.
- Distribution boards and OG box. Every distribution board numbered and cross-referenced, with the outgoing (OG) box clearly marked where present.
- Generator and standby supply details. Capacity, fuel type, and changeover arrangement, if a generator feeds any part of the installation.
- Equipment rating schedules. Transformer capacity, generator output, switchgear ratings, breaker and fuse sizes, and cable sizing tied to load classification.
The naming convention matters as much as the technical content. Each distribution board, feeder, and piece of switchgear needs a unique identifier that stays consistent across the drawing, the site labels, and any submission paperwork. For connections to the transmission system, the Transmission Code sets its own nomenclature rules, and mismatched labeling between what you propose and what the Transmission Licensee assigns is one of the fastest ways to stall a high-voltage connection.
| SLD element | What reviewers check | Governing rule |
|---|---|---|
| Conductor routing | Physically traceable path | Electricity (Electrical Installations) Regulations |
| Switchboard display | Diagram visible near switchboard | Electricity (Electrical Installations) Regulations |
| Equipment ratings | Breaker, fuse, cable sizing consistent with load | EMA / BCA technical review |
| HV nomenclature | Matches Transmission Licensee’s assigned naming | Transmission Code |
Pro Tip: Keep a laminated, current copy of the SLD physically posted at the switchboard. EMA’s own guidance notes that the copy on file with the authority can go stale, so inspectors expect the on-site version, not the one submitted years ago, to reflect the current installation.

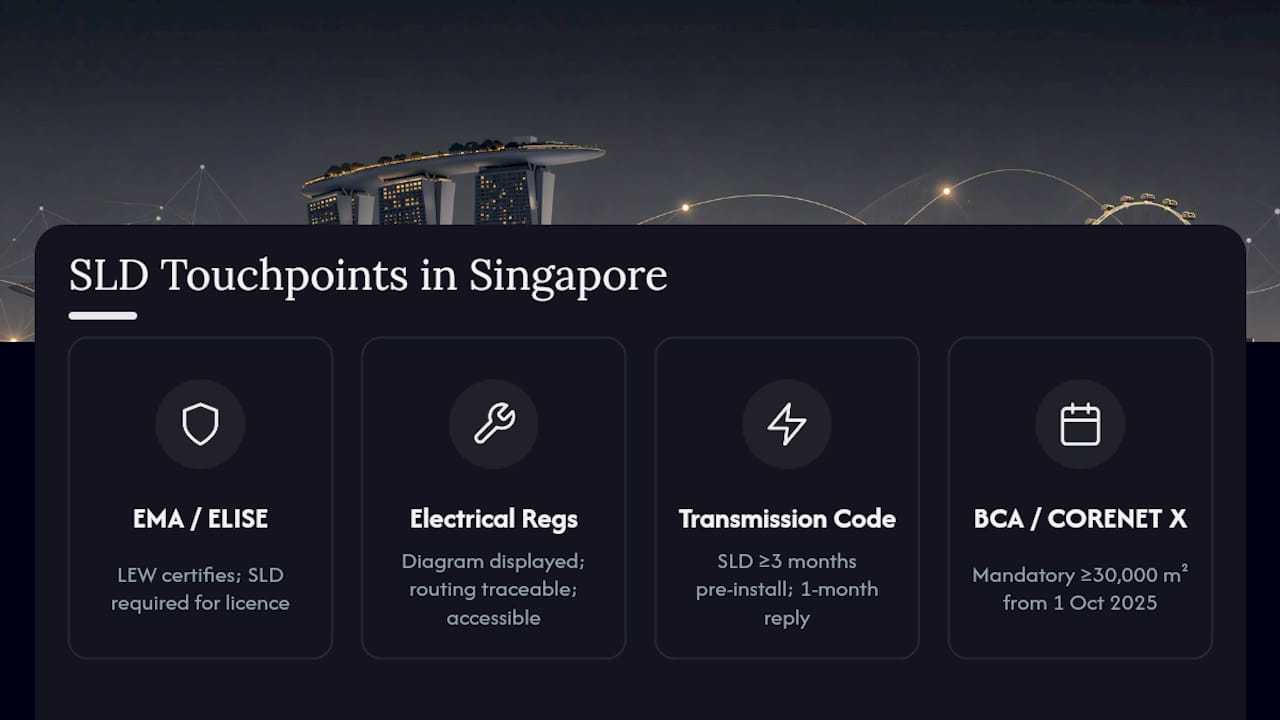

Which Rules and Agencies Govern SLDs in Singapore?
Four regulatory frameworks touch an SLD at different points in a project’s life, and knowing which one applies to your building type determines who signs what and when.
EMA and the Electrical Installation Licence. Under the Electricity Act framework, EMA requires an appointed LEW to inspect and certify the installation before an Electrical Installation Licence application goes in through ELISE, EMA’s online licensing portal. A current SLD is a required document in that application, and the LEW’s Letter of Appointment (LOA) has to be on file.
Electricity (Electrical Installations) Regulations. This is the statutory backbone for the drawing itself. It requires that conductor routing stay traceable, that a diagram be displayed near the switchboard, and that the switchboard arrangement remain accessible for operation and maintenance. An SLD that is technically accurate but locked behind stacked storage or a false ceiling still fails this standard.
The Transmission Code. For any connection to the transmission system, applicants must submit proposed nomenclature and an SLD for each piece of high-voltage apparatus at least three months before the planned installation date. The Transmission Licensee then has one month to accept the proposed naming or issue its own. Miss that three-month window and your connection date slips with it.
BCA and CORENET X. For projects that require a building plan submission through a Qualified Person, the SLD often becomes part of the M&E submission package. Since October 1, 2025, CORENET X is mandatory for new building-plan submissions on projects with gross floor area of 30,000 square meters or more, and the SLD needs to align with whatever electrical schematics feed into that workflow.
How Do You Prepare and Submit an SLD for Licensing?
Getting from a draft SLD to an approved electrical installation licence follows a fairly consistent sequence, regardless of project size. Skipping a step almost always means a resubmission later.
- Appoint a Licensed Electrical Worker. Confirm the LEW’s class matches your installation’s voltage and load, and get the Letter of Appointment signed before any drafting begins.
- Have the LEW inspect and certify the installation. EMA will not accept an ELISE application without the LEW’s sign off on the physical installation matching the drawing.
- Compile the full submission package. This means the SLD itself, equipment rating schedules, a location plan, generator technical data sheets if applicable, and a maintenance-responsibility statement.
- Attach a landlord consent letter for tenant fit-outs. If a tenant’s LEW is submitting on installation that draws power through a landlord’s supply, a signed consent letter confirming the landlord’s system can support the added load has to accompany the package.
- Submit through ELISE for the electrical installation licence. For larger developments, fold the same SLD into the BCA or CORENET X submission where the project’s gross floor area triggers that requirement.
- For high-voltage connections, confirm nomenclature with the Transmission Licensee early. The three-month pre-notification window under the Transmission Code is not a suggestion; treat it as a hard project milestone.
Pro Tip: File for Transmission Code nomenclature approval the moment your HV single-line design is stable, not after the rest of the M&E package is finished. A one-month licensee response window sounds generous until it lands on top of an already tight construction schedule.
What Trips Up Most SLD Submissions?
Most rejections trace back to the same handful of avoidable errors, and nearly all of them show up before the drawing even reaches a technical reviewer.
- Inconsistent numbering between the SLD, physical labels on site, and the Transmission Licensee’s assigned nomenclature.
- A missing landlord consent letter on tenant-installed works, which stalls ELISE processing almost automatically.
- Equipment ratings left off or mismatched with what is physically installed on switchgear and breakers.
- Switchboard components that are physically inaccessible for inspection, even when the drawing itself is accurate.
- An outdated SLD kept at the switchboard that no longer matches what was actually submitted and approved.
| Checklist item | Responsible party |
|---|---|
| SLD notation, numbering, conductor routing | Drafter / M&E designer |
| Installation inspection and certification | Licensed Electrical Worker |
| Consent letter (tenant installations) | Landlord’s LEW |
| BCA / CORENET X cross-check | Qualified Person |
| Current SLD posted at switchboard | Building owner / facilities team |
Assign each line to a named person before submission, not after a rejection notice arrives.

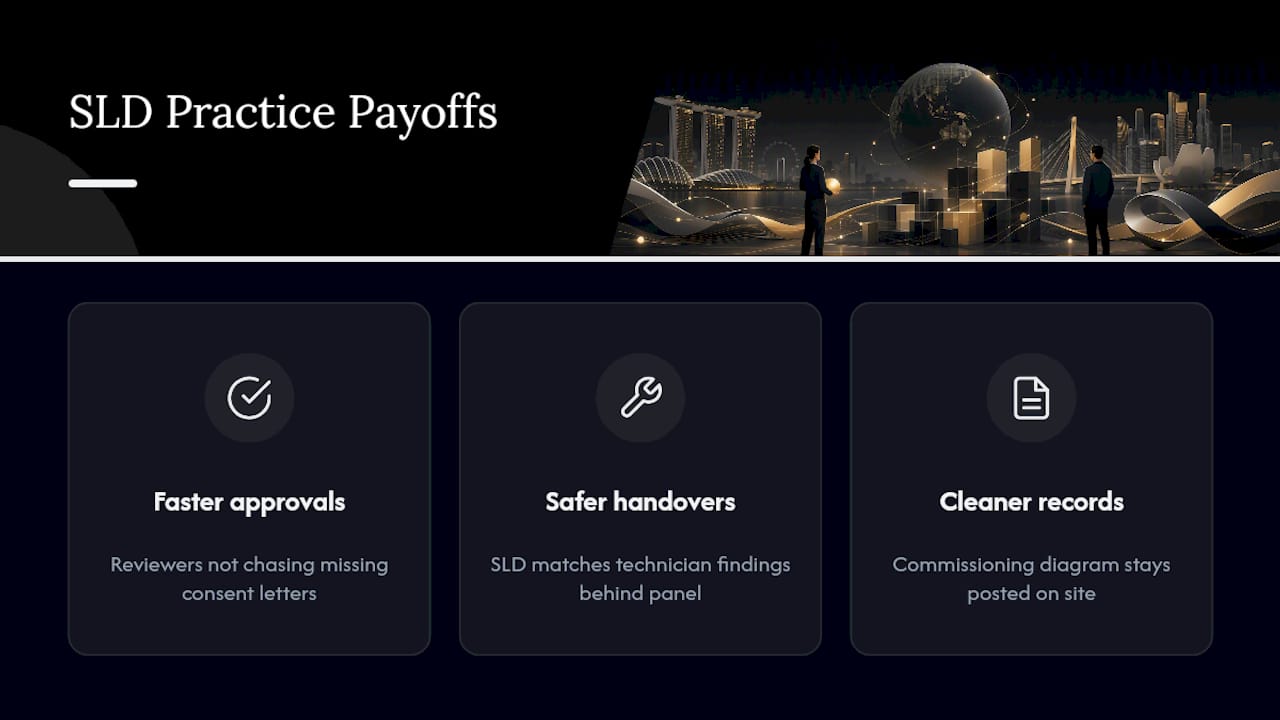

Why Disciplined SLD Practice Pays Off on Singapore Projects
Coordinating LEW appointments, PE endorsements, and authority submissions across a single project makes the pattern obvious: the projects that move fastest through EMA and BCA review are the ones where the SLD was treated as a compliance document from day one, not a drafting afterthought.
The payoff shows up in three places. Approvals move faster because reviewers are not chasing missing consent letters or mismatched nomenclature. Handovers are safer because the SLD at the switchboard actually matches what a technician finds behind the panel. And maintenance records stay clean for years, because the diagram used at commissioning is the same one still posted on site.
None of this requires exotic technical skill. It requires discipline about naming conventions, document sequencing, and knowing which agency’s clock is running at any given moment.
— Aman
How Aman Engineering Handles SLD Drafting and Authority Coordination
Preparing a compliant SLD means coordinating a drafter, a Licensed Electrical Worker, and often a Professional Engineer, all before a single document reaches EMA or BCA. Aman Engineering’s electrical engineering and LEW coordination service handles that coordination directly, pairing PE endorsements with LEW appointment paperwork so the Letter of Appointment, inspection certification, and SLD are aligned before submission rather than patched together afterward.
Where a project’s scale pushes it into BCA building-plan or CORENET X territory, Aman’s team produces submission-ready shop drawings and 3D BIM deliverables that keep the SLD consistent with the rest of the M&E package. Clients get a consolidated submission checklist, LOA handling, and end-to-end statutory coordination instead of managing separate consultants for each authority touchpoint. If your project needs an SLD prepared, checked, or brought into line with EMA and BCA requirements, start with Aman’s authority approvals team.
Sources
- Electricity (Electrical Installations) Regulations (Singapore Statutes Online)
- Building plan submission (BCA)
FAQ
Who Is Required to Sign Off on an SLD in Singapore?
A Licensed Electrical Worker must inspect and certify the installation before an SLD accompanies an EMA electrical installation licence application. For projects requiring a building-plan submission, a Qualified Person also cross-checks the SLD against the wider M&E package.
Does Every Project Need to Go Through CORENET X?
No. CORENET X became mandatory only for new building-plan submissions with gross floor area of 30,000 square meters or more, starting October 1, 2025. Smaller projects typically route through standard ELISE and building-plan channels instead.
How Far in Advance Do High-Voltage Connections Need Nomenclature Approval?
Applicants must submit proposed nomenclature and an SLD for high-voltage apparatus at least three months before the planned installation date, and the Transmission Licensee has one month to respond. Starting this process late is one of the most common causes of connection delays.
What Happens if the SLD at the Switchboard Doesn’t Match the Submitted Version?
Inspectors expect the SLD physically posted at the switchboard to reflect the current installation, and EMA has flagged that its own filed copy can become outdated over time. A mismatch between the on-site drawing and the approved version typically triggers a re-inspection request before any licence renewal proceeds.
